DIY Rails

Each rail section consists of 1 rail and 1 angle brace.

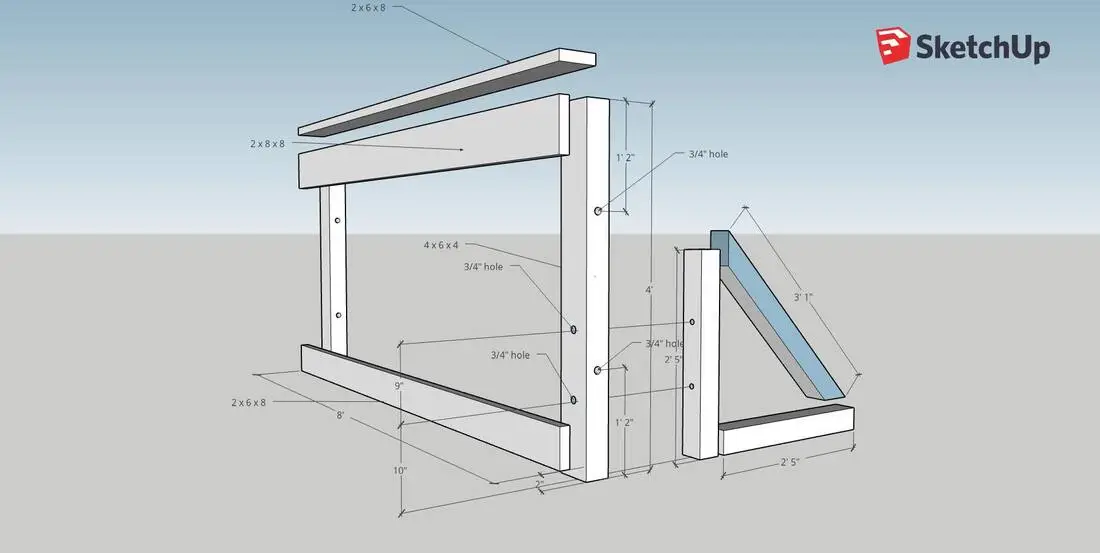

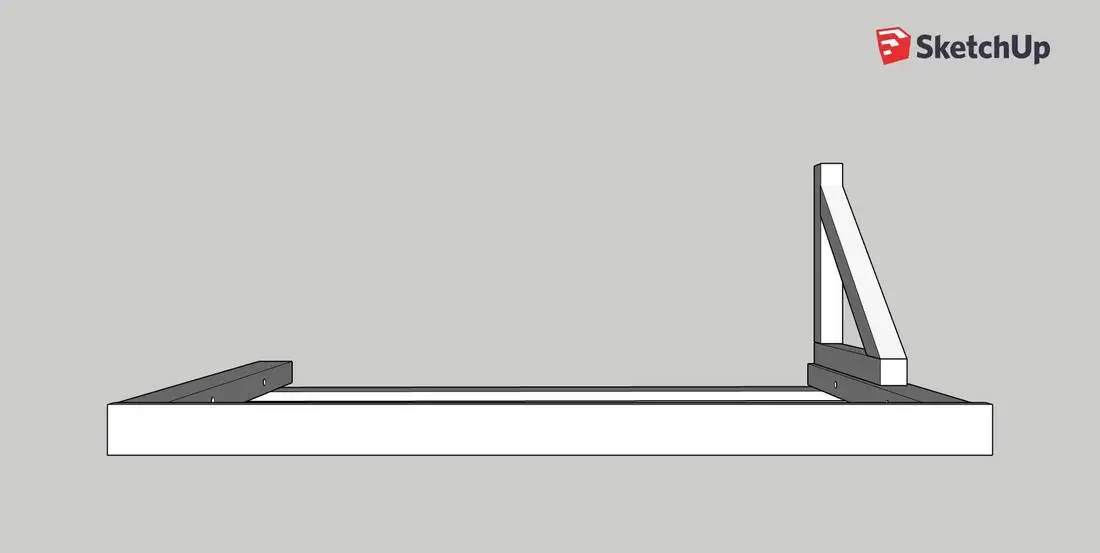

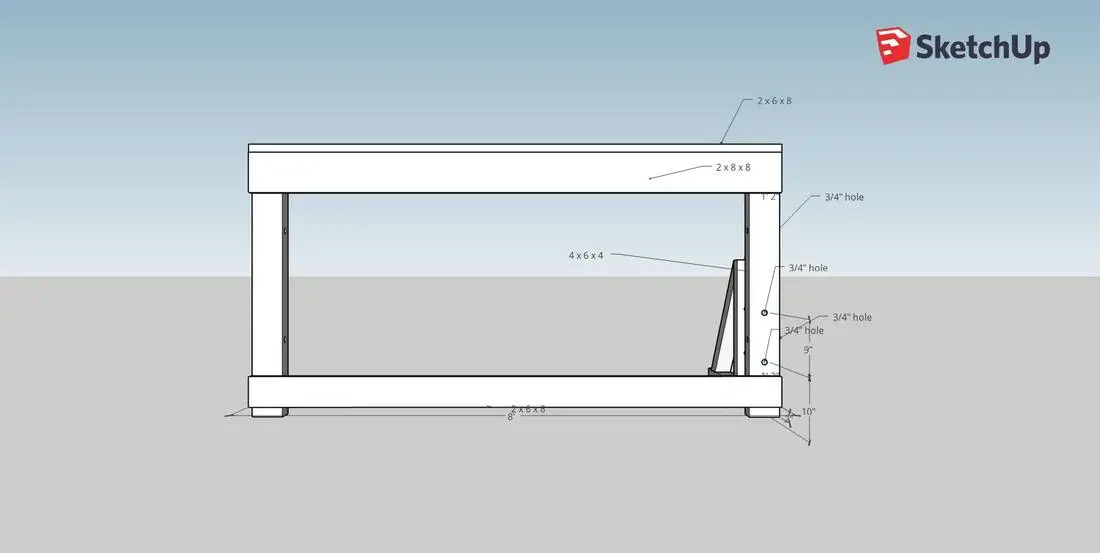

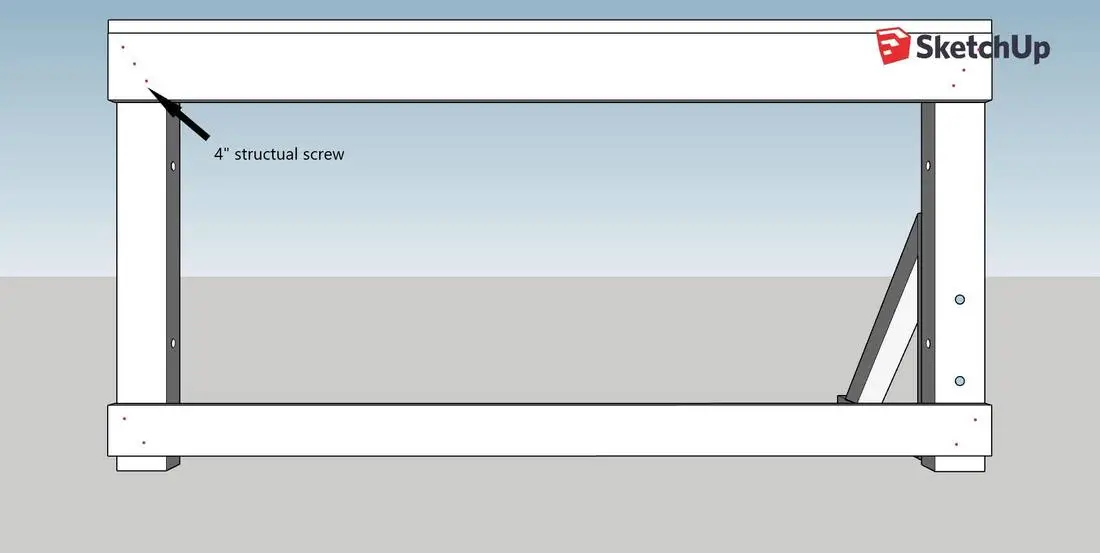

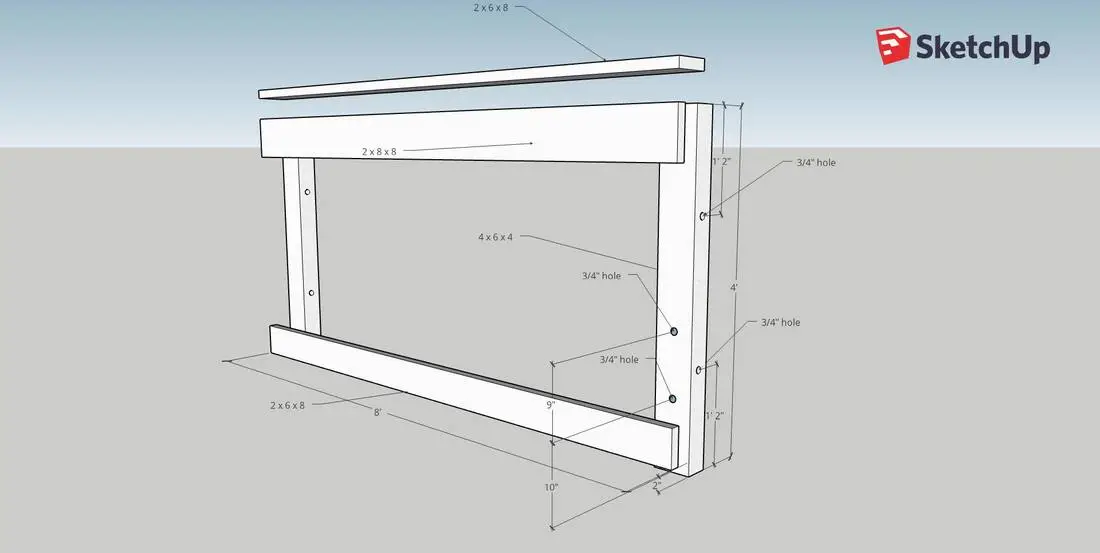

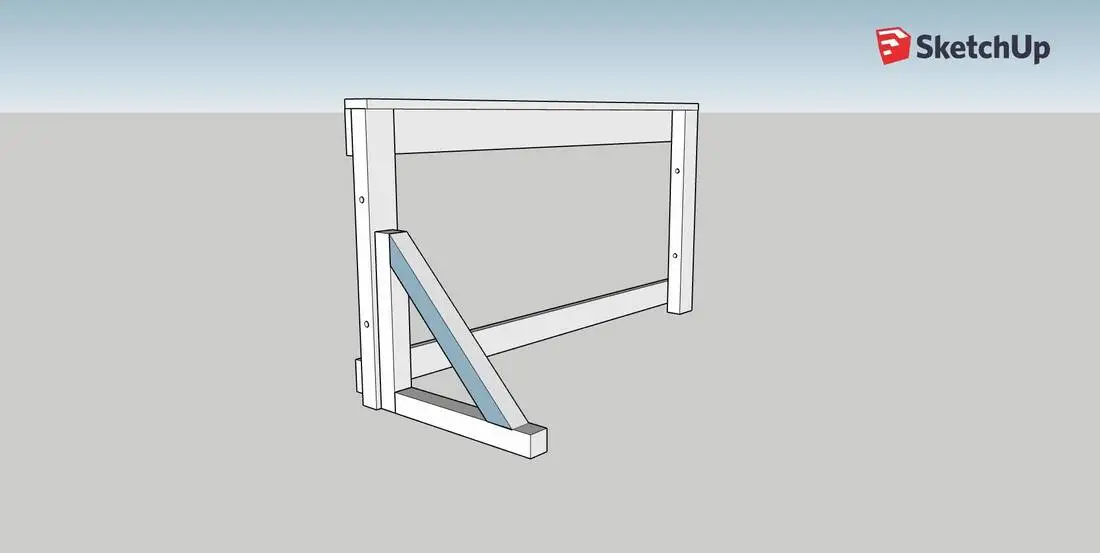

(See attached drawing)



Materials needed for 1 section:

Lumber

  • 2″x10″x8′ — 1

  • 2″x6″x8′ — 2

  • 4″x6″x8′ — 1

  • 4″x4″x8′ — 1

Hardware

  • 12″x1/2″ hex bolt — 2

  • 8″x1/2″ hex bolt — 2

  • 1/2″ nut — 4

  • 1/2″ washer — 8

  • 4″ structural screw — 20



A 24′ x 32′ fighting list requires 14 rail sections.

Materials needed for 24′ x 32′ list:

Lumber

  • 2″x10″x8′ — 14

  • 2″x6″x8′ — 28

  • 4″x6″x8′ — 14

  • 4″x4″x8′ — 14

Hardware

  • 12″x1/2″ hex bolt — 28

  • 8″x1/2″ hex bolt — 28

  • 1/2″ nut — 56

  • 1/2″ washer — 112

  • 4″ structural screw — 280
